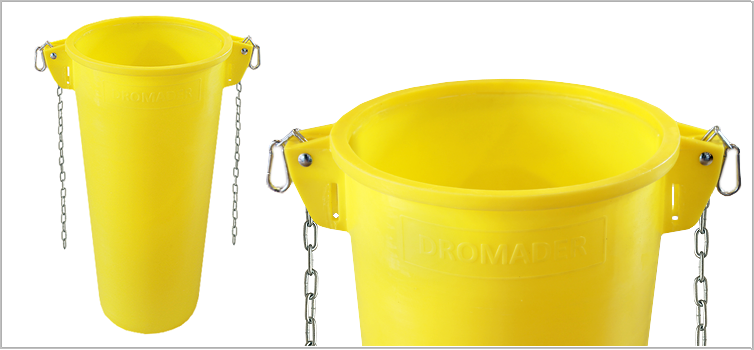

Straight section chute DROMADER


Straight section chute DROMADER

Straight section chute DROMADER

Straight section chute DROMADER

Presentation 360° - straight section chute




Technical data


Description Technical data
Product name: Tramo recto
Mark: DROMADERTM
Symbol: DTR002
Type of polyethylene: DOWLEXTM 2629.10 UE
Production method: Rotomoulding
Certificate: Declaration CE
Colors: Available yellow, other colors available on request.
Weight with chains: 8 kg
Thickness of the wall: 5,0-5-5 mm
Height: 1040 mm
Outer diameter max / min: 500 mm / 366 mm
Inner diameter max / min: 455 mm / 360 mm
Chains: DIN-763, 5 x 35 x 22 mm, carga 600 kg
Fasteners: DIN-5299, 8 x 80 mm, carga 230 kg
Screws: DIN-603, M8 x 80 mm, acero cincado
Self-locking nut: DIN-985, M8 con arandela plástica

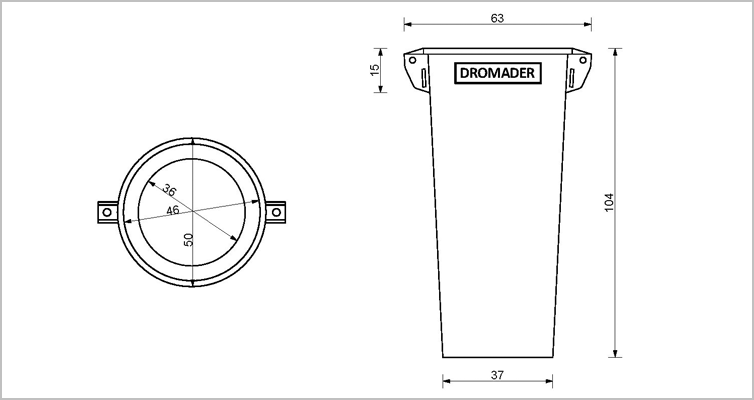

Technical drawing


Straight section chute DROMADER
